GOODBOND INSULITE
FOAMED TRUCK BODY PANEL
PRODUCT INTRODUCTION

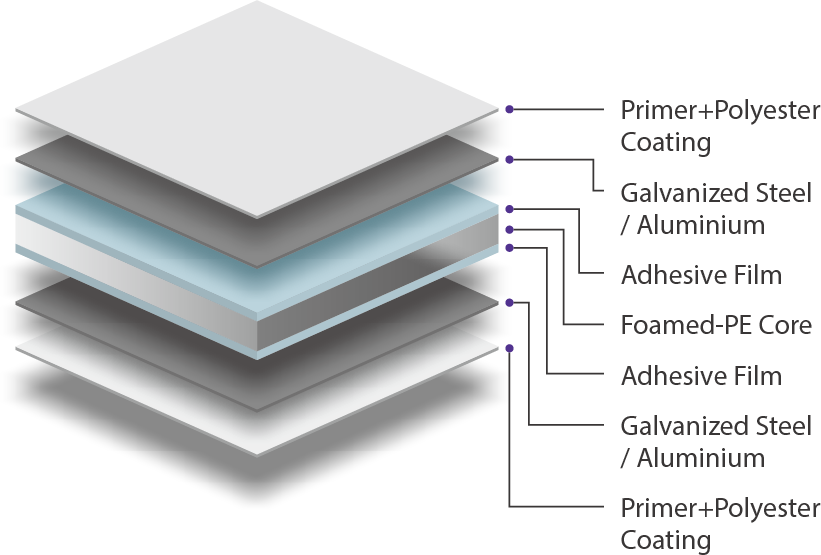

The physical foamed truck body panel adopts a galvanized steel (or aluminium) | foamed-PE core | galvanized steel (or aluminium) sandwich structure. It is made of continual lamination under high temperature and pressure.The foamed-PE core is made by advanced physical nitrogen foaming technology. It doesn't contain any chemical foaming agent and is friendly to the environment. It can pass the RoHS testing.
PRODUCT FEATURES
LIGHT WEIGHT
The foam expansion rate of the foamed-PE core is around 50% . The material weight of unit volume is reduced half. It is good for the lightweight of the truck and also good for fuel saving. As the foamed truck body panel is thinner than the traditional truck body panel. The loading space will increase through replacing the traditional truck body panel with our foamed truck body panel.
HIGH RIGIDITY
The foamed truck body panel is the sandwich structure bonded with high strength steel on both sides. The rigidity of panel is very good.
THERMAL INSULATION
The foamed truck body panel gets good thermal insulation as there are dense bubbles in the foamed-PE core. It is one of the ideal body panel for the refrigerated trucks in the future.
EASY INSTALLATION
The innovative joining method has greatly improved the installation efficiency. The installation cost of truck body will be reduced by more than 30%.
ENVIRONMENT FRIENDLY
The production process of physical foamed truck body panel does not require painting, pickling, and drying processes.There is no volatilizing of toxic.
PRODUCT SPECIFICATIONS
Panel Thickness: 5mm-18mm
Metal Skin Thickness: 0.25mm-0.50mm
Width: 600mm-1500mm
Length: 2400mm or Customized
Color: White or Customized
MECHANICAL PROPERTIES
| Overall Thickness | Skin Thickness | Flexural Strength | Tensile Strength | Peel-off Strength | Penetration Resistence | Density |
|---|---|---|---|---|---|---|
| mm | mm | psi | psi | N/mm | kg | kg/m2 |
| 6 | 0.30 / 0.30 | ≥20000 | ≥9000 | 7.5 | ≥450 | 7.5 |
| 6 | 0.40 / 0.40 | ≥20000 | ≥10000 | 7.5 | ≥580 | 9 |
| 8 | 0.30 / 0.30 | ≥14000 | ≥10000 | 7.5 | ≥720 | 8.5 |
| 8 | 0.40 / 0.40 | ≥15000 | ≥13000 | 7.5 | ≥750 | 10 |
| 12 | 0.40 / 0.40 | ≥10000 | ≥14000 | 7.5 | ≥900 | 12 |
| 12 | 0.50 / 0.50 | ≥11000 | ≥16500 | 7.5 | ≥1100 | 13.8 |
| Testing Standard | – | ASTM D790 | ASTM D638 | – | – | – |
PRODUCT INSTALLATION
There are three installation methods recommended for your reference:

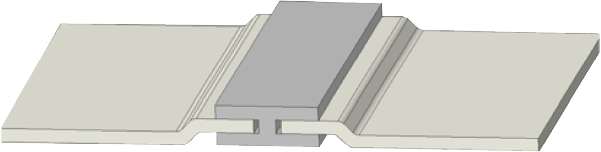

1. H-formed steel joint method

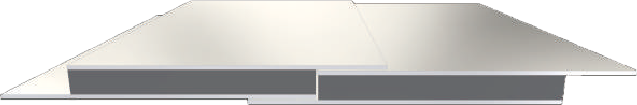

2. Simple adhesive joint method

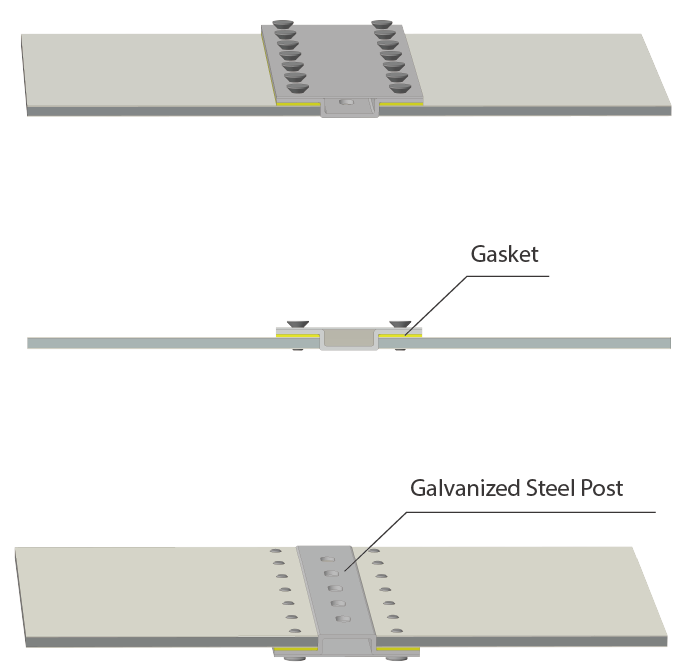

3. Rivet joint method
APPLICATIONS

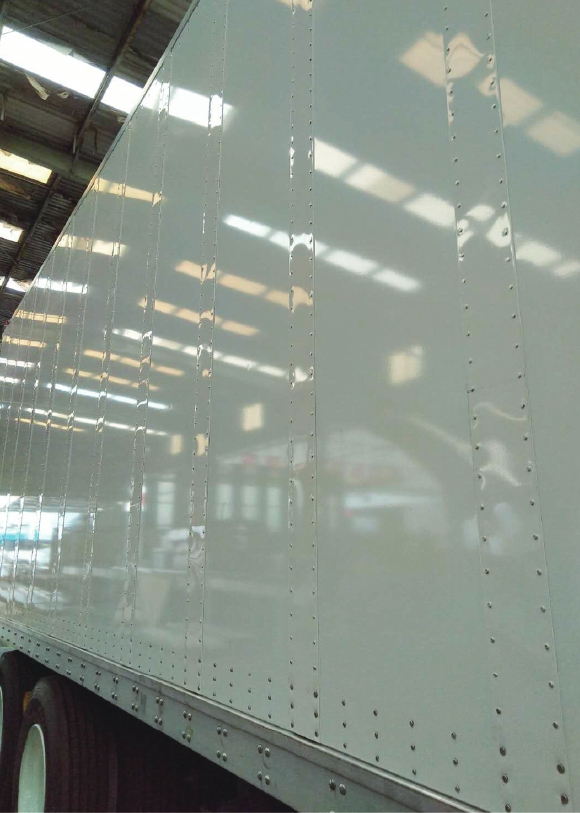

Side Panel

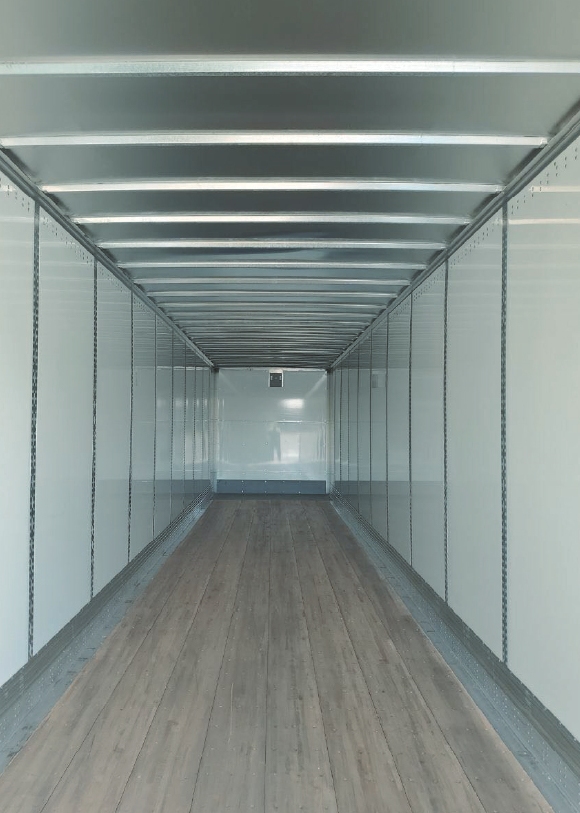

Interior Liner Roof / Floor Panel

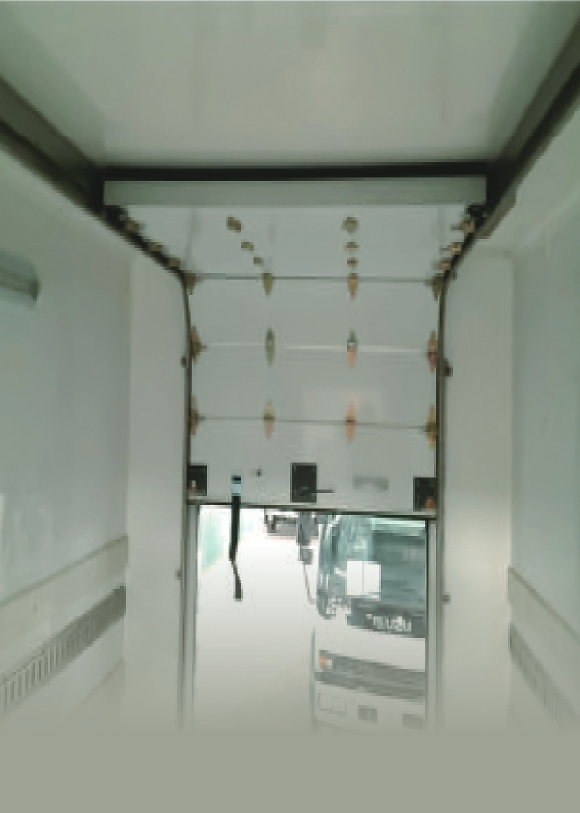

Roll-up Door Panel
